Galvanized Steel Sheet Exterior Thermal Cycle Test Chamber Defrost-Free Operation
Applicable industries:
Industrial Three Boxes Temperature Stability Thermal Shock Tester For PCB Substrate applied to aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civiliannuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, and technical supervision departments; building materials ceramic; petroleum and chemical products, For high and low temperature
impact test.
High Accuracy Shock Thermal Air Test Chamber,Shock Thermal Tester is divided into high temperature area, low temperature area and test area three parts, each area is a unique insulation structure, so doing hot and cold impact test. High-temperature impact test or low-temperature impact test, the maximum time is up to 9999 minutes, the most cycle time is up to 9999 times. The machine can be automatically or manually cycle the impact or selectively set the two areas or three areas to impact of hot and cold. It used binary cooling system that is very effectiveness for cooling, the cooling system is divided into the air-cooled and water-cooled. It also can be connected with a computer, but the record instrument is only for optional purchase.
Corresponding standard:
1.GB/T2423.1-1989 low-temperature testing method
2.GB/T2423.2-1989 high-temperature testing method
3.GB/T2423.22-1989 temperature test
4.GJB150.5-86 temperature impact test
5.GJB360.7-87 temperature impact test
6.GJB367.2-87 405 temperature impact test
Specification:
| Model | GSKA-80L
(A~F) | GSKA-150L
(A~F) | GSKA-225L
(A~F) | GSKA-408L
(A~F) | GSKA-800L
(A~F) | GSKA-1000L
(A~F) |
| Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temperature range | (Low temp.:A:+25℃; B:0℃;C:-20℃; D:-40℃; E:-60℃; F:-70℃) (High temp.: + 150℃) |
| Humidity range | 20%~98% R.H |
Temp analytic accuracy/
uniformity | 0.1℃/±2.0℃ |
| Temperature Fluctuation | ±0.5℃ |
| Humidity control accuracy | ±0.1%;±2.5% |
| Heat, cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min |
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer |
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials |
| Cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) |
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4, Foot Cupx4 |
| Compressor | Original France“Tecumseh”brand |
| Controller | Taiwan, Independent R&D software |
| Power | AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 |
| Weight (kg) | 170 | 220 | 270 | 320 | 450 | 580 |
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Product Tags:
|
|

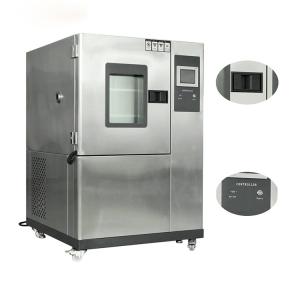

SUS304 Climatic Thermal Cycle Test Chamber Antirust Multifunctional Images
|
